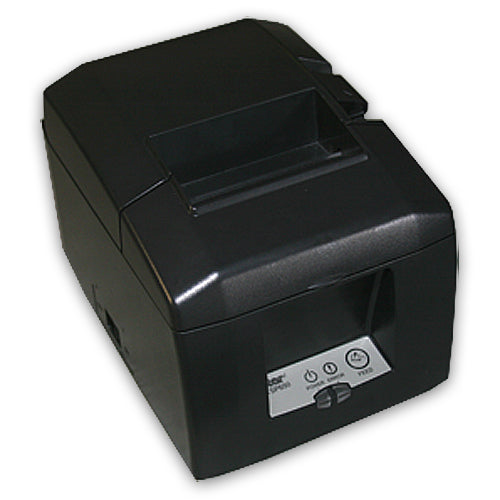

Refurbished Star Micronics TSP650 TSP654 Receipt Printer

Star Micronics TSP650 Thermal Receipt Printer Model TSP654 Refurbished Dark Gray

Interface Selection Questions?

Expedited Shipping Information

$175.00
Free UPS Ground Shipping!

• Fully Refurbished, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA
• Small Footprint Design
• High Reliability and Swappable Interfaces
• Square Compatible with Ethernet and USB Interfaces
• Receipt Autocutter Installed
• Dark Gray Color
• Power Supply and Power Cord Included, interface cables sold separately

** If you are using the Square Register app, the USB version of the Star TSP654 Printer and must be used with the Square Stand Hardware. You will need a Star ethernet or bluetooth printer if you are using Square or a similar Point of Sale app with the tablet or device by itself.

Full Specifications :

Printer Method

Direct Line Thermal

Print Speed

30 Receipts Per Minute (150 mm/sec)

Printer Case Color

Putty or Gray

Models Available

Tear Bar or Auto Cutter

Print Resolution

203 dpi

No. of Columns

48 / 64

Font Size

9 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added

Bar Codes

9 versions / PDF 417 Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width


80mm standard, Adjustable 58mm with paper guide

0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
Standard
80mm paper = 72mm, 58mm paper = 52mm

Top Margin

11 mm or 13 mm minimum default

Auto Cutter

Guillotine (Partial Cut Only)

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Multiple Copy Support

Available through Star Raster Driver

Journal Capability

N/A

Label Support

N/A

Power Supply

External; Requires PS60A External Power Supply

Drivers Available

Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry

Digitally Signed (WHQL)

N/A

Swappable Interfaces

Yes

Connectivity

Serial, Parallel, USB, or Ethernet

Emulation Modes

Star Mode, ESC/POS™

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply

Operating Conditions

Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH

Dimensions
Weight:
Auto Cutter Model
Tear Bar Model

142 x 132 x 202 (w x h x d)mm

TSP654 – 1.72 kg
TSP651 – 1.56 kg

Safety Standards

UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
1 Million Cuts

Options

External Power Supply (PS60A)
Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swappable Interfaces
24V Mobile Power Supply
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
