Square Hardware Bundle Combo Star TSP100 TSP143U SP742ML Receipt Printers and Cash Drawer

Square Stand Hardware Bundle TSP143U & SP742ML Receipt Printer Cash Drawer Combo

Interface Selection Questions?

Expedited Shipping Information

$499.00

• Fully Refurbished Printer, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA

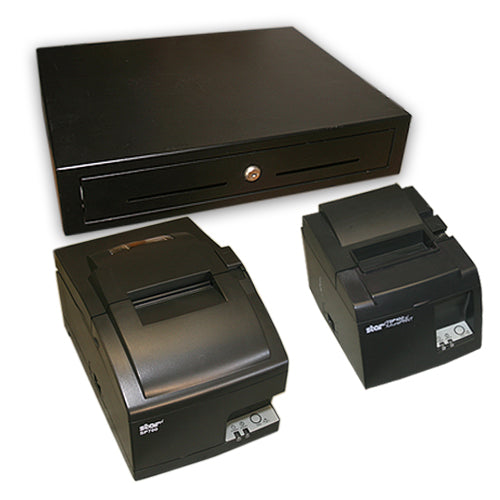

• Star TSP143U AND SP742ML Receipt Printers and a NEW Compatible Cash Drawer
• Square Stand Compatible Thermal Receipt USB Printer Included
• Ethernet Remote Dot Matrix Kitchen Order Printer Included
• New Standard Duty, Reliable Cash Drawer with Lock
• Thermal Printer Printer Plugs directly into the Square Stand's USB Hub
• Receipt Autocutter Installed on Both, Built in Power Supplies
• Dark Gray Color Printer, Black Cash Drawer with 5 Space Till
• All Cables, Receipt Paper Rolls and Everything you need to get started is included
• Tablet or Square Stand Hardware is NOT included

** If you are using the Square Register app, this is the USB version of the Star TSP143 Printer and must be used with the Square Stand Hardware. You will need a Star ethernet or bluetooth printer if you are using Square or a similar Point of Sale app with the tablet or device by itself.

Cash Drawer Specifications :
Dimensions 16.5" x 16" x 3.5"
Weight 12 lbs
Color Black
Lock 3 Position Lock & 2 keys included
Cables Rj11 Cash Drawer Kick Cable Included
Till 5 space bill and 5 space coin trays
Material Metal bottom case, plastic till with removable trays

Star TSP143U Specifications :
Dimensions 142W x 204D x 132H mm
Weight Auto cutter model: 1.73 Kg - Tear bar model: 1.56Kg
Color Options White, Dark Gray
Interface USB 2.0, Full Speed, or Powered USB Full Speed or Ethernet; Virtual Serial Port for Legacy Applications
Print Method Direct thermal
Print Speed 125 mm / second, 22 rpm (receipts per minute)
Print Resolution 203 x 203 dpi
Emulation Star Mode, ESC/POS
OPOS Compatible Yes
Character Set ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese
Barcodes Supported Extended barcode functionality – 9 versions / PDF417 & Maxicode (pending)
Graphics Printing Yes
Data / Logo Storage Yes - printer software features an image import tool to store and handle an unlimited number of jpgs, gifs and bmps
Operating Temperature 41°F - 113°F (5°C - 45°C)
MCBF 60,000,000 lines
Print Head Life 100 Km
Auto Cutter Lifespan 1 million cuts
Paper Dimensions 80 mm standard width (58 mm with fitted guide), 83 mm maximum diameter
Paper Thickness 0.065 to 0.085 mm
Two Color Printing Capabilities Yes - red/black, blue/black, green/black (special paper required)
Auto Cutter Optional - guillotine cutter
Wall Mountable Yes
Mac Compatible Yes - OSX 10.2 or later

Star SP742ML Specifications :
Printer Method 9 Pin Serial Impact Dot Matrix
Print Speed 13 Receipts Per Minute (4.7 Lines Per Second at 42 Columns)
Printer Case Color Putty or Gray
Models Available Tear Bar or Auto Cutter Without Rewinder
Tear Bar or Auto Cutter With Rewinder
Two Color Print Capability Red & Black Ribbon Required – RC700BR
No. of Columns 42 / 35
Font Size
Character Size
Character Set
Code Pages
Character Per Inch (CPI)

5 x 9 / 7 x 9
1.2 (W) x 2.42 (H) / 1.5 (W) x 2.42 (H) mm
95 Alphanumeric, 32 International
40
16.9 / 14.1

Line Spacing 1/6 inch Standard

Paper Specifications
Width

Roll Diameter
Thickness 1 Ply Paper
Copy Capability 2 Ply
Copy Capability 3 Ply
Easy-Load
Paper Out Sensor
Paper Low Sensor
Print Width


76mm standard, Adjustable 69.5mm or 58mm with paper guide

Up to 85mm
0.065 ~ 0.085 mm
Original + 1, 0.05-0.08 / piece, total less 0.14
Original + 2, 0.05-0.08 / piece, total less 0.20
"Drop-In & Print"
Standard
Optional
63mm, 57mm, 45mm

Ribbon Specifications

RC700B
RC700BR
RC700D



Black (3,000,000 Characters)
Black/Red (1,500,000 / 750,000 Characters)
Indelible Black Ribbon (Laundry Applications)

Auto Cutter Guillotine (Partial Cut Only)
Cover Open Sensor Yes
Program ROM Flash Memory (16 Mbit), NV bit image 256 KB
Multiple Copy Support Original + 2 Copies Maximum
Journal Capability Yes; Rewinder model required
Label Support N/A
Power Supply Internal; Power cable included in box

Drivers Available

Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry

Digitally Signed (WHQL) Yes
Swappable Interfaces Yes
Connectivity Apple MFi Certified Bluetooth, WebPRNT, WebPRNT Browser App, Serial, Parallel, USB, Ethernet
Emulation Modes Star Mode, ESC/POS™
Peripheral Drive Circuit 2 Drivers
Power Consumption  Average 36W. Printing, 10W.
Operating Conditions Temperature: 0ºC to 50ºC
Humidity: 0% - 90% RH (without condensation)
Storage Conditions Temperature: -20ºC to 70ºC
Humidity: 5% - 95% RH
Dimensions
Non-Rewinder Models
Rewinder Models

Weight:
Tear Bar Model
Auto Cutter Model
Tear Bar Rewinder Model
Auto Cutter Rewinder Model

160 x 152 x 245 (w x h x d)mm
164 x 152 x 245 (w x h x d)mm


2.96 kg
3.18 kg
3.43 kg
3.65 kg

Safety Standards UL, C-UL, TüV, CB, FCC Class A, VCCI Class A, EN55022, CE
Reliability MCBF
Print Head
Auto Cutter
22 Million Lines
150 Million Characters
1 Million Cuts
Options Kitchen Buzzer (BU01-24-A)
Wall Mount Bracket (WB-S700)
Vertical Stand Kit (VS-S700)
Near End Paper Sensor
Swappable Interfaces
Swap-A-Star Extended Warranty Program (US)
Extend-A-Star Extended Warranty Program (US and Canada)
