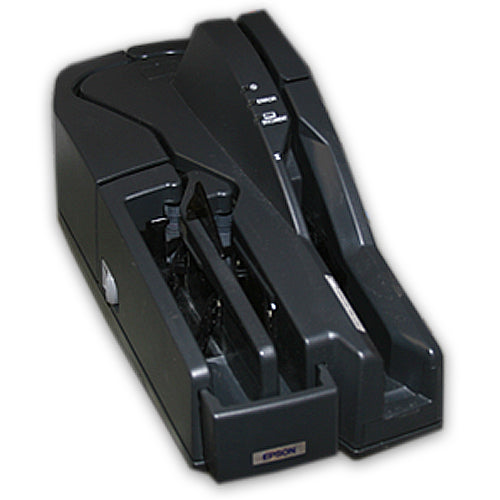

Epson TM-S1000 Single Sheet Check Scanner

Epson TM-S1000 1 Sheet Max Document Check Scanner USB M136A MICR

Interface Selection Questions?

Expedited Shipping Information

$160.00

• Fully Refurbished, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA
• Single Sheet at a Time Input Version
• High reliability check and coupon scanner
• USB 2.0 Interface
• Bank Teller Industry Standard Check Scanner
• Dark Gray Case Color
• Power Supply Included, interface cables sold separately

Epson’s TM-S1000 cheque scanner is ideal for banks and corporations that want to capture cheques using back office capture (BOC), remote deposit capture (RDC) or a combination of the two. The Epson cheque scanner comes in both a 30 DPM and 60 DPM version and features RDMs MICR algorithms and imaging to provide one of the highest MICR accuracy of any desktop scanner on the market today. The TM-S1000 also features clear electronic endorsements, a double cheque detector that virtually eliminates double cheque feeding and a built-in franker that prints a static message on cheques to prevent double processing.

The TM-S1000 comes with two pocket support as a standard feature. This gives you the flexibility to process and segregate different types of documents such as cheques and payment coupons.

Whether you use TM-S1000 in the back office or at a busy teller station, the S1000 has been designed for easy maintenance. The cheque scanning process is simple and replacing the franker unit is quick and easy with no special training required. The Scanner also features advanced self-diagnostics which keep the operator informed of the scanner status and clear error messages.

With a MCBF of 2.47 million documents, the TM-S1000 has the reliability you need. As a world leading manufacturer of retail and office equipment, Epson offers high quality engineering with world class quality control and support.

Epson TM-S1000 Full Specifications :
IMAGE SCANNER UNIT
Scanning mode : 256-level grey scale, Black and White
Scanner type : Contact image sensor (CIS)
Resolution cut sheet paper : 100 x 100 dpi, 120 x 120 dpi, 200 x 200 dpi
Data format : Grey scale: TIFF, JPEG, BMP, Raster, Black and White: TIFF, BMP
Scanning speed cut sheet : 500 mm/s
Document size : 120 mm - 235 mm (L) x 68 mm - 120 mm (H)
Pocket capacities : ASF: 100 Sheets, Main pocket: 100 Sheets, Sub pocket: 50 Sheets
Pockets : Multi feed pocket, Two output pockets
MICR reader : Permanent magnetic bias
MICR symbologies : E13B, CMC7
OCR : E13B, OCR A, OCR B
Supported document type : Normal paper
CUT SHEET PAPER UNIT
Endorsement Print : Yes
Life franking cartridge : Exclusive franking cartridge EFC-01
GENERAL :
Color : Epson Dark Grey
Interfaces : USB 2.0 Type B
Product dimensions : 355 x 160 x 176 mm (Width x Depth x Height)
Product weight : 4 kg
Humidity Operation : 20% - 80%, Storage 5% - 85%
Temperature Operation : 10° C - 40° C, Storage -20° C - 60° C
RELIABILITY - RECEPT PRINTER UNIT
Life franking cartridge : 18,000 Sheets
Reliability Life: 1,000,000 Sheets / MCBF: 2,470,000 cycles
