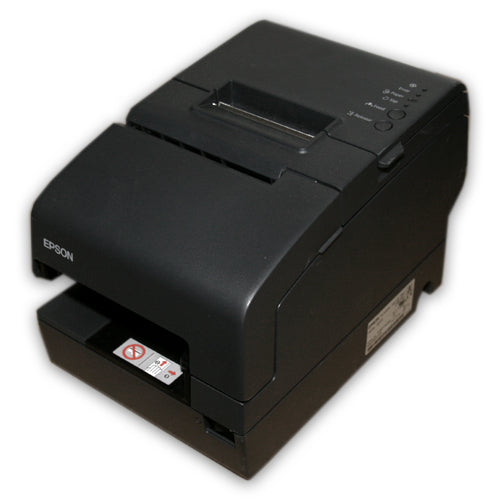

Epson TM-H6000IV MICR Bank Printer

Epson TM-H6000IV Multifunction Receipt Printer Model M253A MICR

Interface Selection Questions?

Expedited Shipping Information

$199.00

• Fully Refurbished, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA
• Installed Options : MICR Unit and Endorse Printer Unit (Validition Unit not Installed)
• Built in USB Interface Standard
• Fastest printing in its class up to 300mm/second
• Fastest check transaction speed in its class with Epson's QuickPass technology
• 99.9% MICR accuracy; a leader in the industry
• Best-in-class reliability with MCBF of 96 million lines
• Superior slip handling with built-in forms stopper
• High-resolution graphics with no processing delay
• Ease-of-use features including drop-in paper loading, autocutter and status LEDs
• Low power consumption and print options to reduce paper usage
• Dark Gray Case Color
• Power Supply and Power Cord Included, interface cables sold separately

Full TM-H6000IV Specifications :

Print Methods Receipt: Thermal line printing
Slip: 9-pin serial impact dot matrix
Endorsement (optional): 8-pin shuttle impact dot matrix
Print Font

Receipt: 9 x 17 / 12 x 24
Slip: 5 x 9 / 7 x 9
Endorsement: 5 x 7
Receipt: 56 / 42 columns
Slip: 60 / 45 columns
Endorsement: 40 columns
Receipt: 0.99 x 2.4mm (W x H){0.039 x 0.095"}
Slip: 1.56 x 3.1mm (W x H){0.061 x 0.122"}
Receipt: 1.41 x 3.39mm (W x H){0.056 x 0.134"}
Slip: 1.24 x 3.1mm (W x H){0.049 x 0.122"}
Endorsement: 1.1 x 2.42mm (W x H) {0.043 x 0.099"}
95 Alphanumeric, 37 International, 128 x 8 Graphic

Print Speed Receipt: 200mm/sec (63 lines per second (lps), 3.18mm {1/8"} conversion)
Two-color thermal mode: 78mm/sec (40 columns, 17.8 cpi) (24.5 lps, 3.18mm {1/8"} conversion)
Slip: Approx. 5.7 lps
Endorsement: Approx. 1.9 lps
Paper Dimensions Thermal: 79.5 ± 0.5 x 83.0mm diameter {3.13 ± 0.02 x diameter 3.27"}
Slip: 70-148 x 150-210mm (W x L) {2.76 to 5.82 x 5.91 to 8.27"}
Paper Thickness Receipt: 0.06 to 0.09mm {0.0024 to 0.0035"}
Slip: 0.09 to 0.31mm {0.0035 to 0.012"}
Endorsement: 0.09 to 0.2mm {0.0035 to 0.0079"}
Validation 8 lines
Copy Capability Receipt: original (thermal)
Slip: One original and three copies
Endorsement: one original
Inked Ribbon Slip: ERC-32B (Black)
Endorsement: ERC-41B (Black)
Ribbon Life Slip: 4,000,000 characters
Endorsement: 800,000 characters
Power Supply Voltage 24 VDC ±10% (PS-180)
Current Consumption Approx. 1.8 A (mean)
D.K.D. Function 2 drivers
Reliability MTBF 360,000 hours (receipt)  180,000 hours  (slip)
MCBF 72,000,000 lines (receipt) 29,000,000 (slip)
Overall Dimensions 186 x 298 x 209mm (W x D x H) {7.3 x 11.7 x 8.2"}
Weight

Approximately 11.7 lbs

Environmental Standards VCCI class A, FCC class A, CE marking, WEEE, RoHS compliant
Safety Standards UL, CSA
Interfaces Built in USB Standard, RS-232C Serial, Parallel, RS-485, USB, Ethernet, Wireless, Power Plus USB
Factory Options MICR device, endorsement printer, validation
Data Buffer 4 KB or 45 bytes
NV Bit Image Memory 384 KB Maximum graphic file storage
