Square Stand Compatible Hardware Bundle Star TSP143U USB

Square Stand Hardware Bundle TSP143IIU ECO Receipt Printer + Cash Drawer TSP100II USB

Interface Selection Questions?

Expedited Shipping Information

$224.99 $250.00

• Fully Refurbished Printer, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA

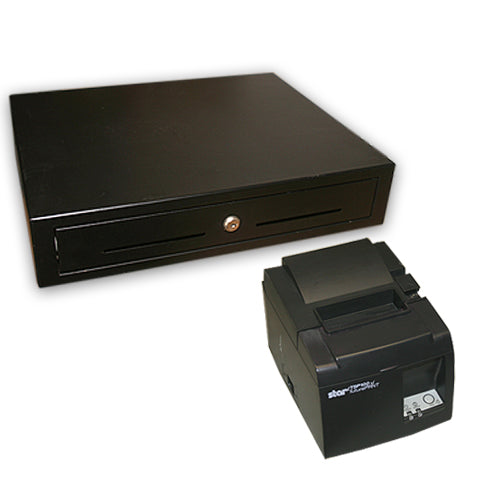

• Star TSP143IIU Receipt Printer and a NEW Compatible Cash Drawer
• Square Stand Compatible Thermal Receipt Printer, USB Interface
• New Standard Duty, Reliable Cash Drawer with Lock
• Printer Plugs directly into the Square Stand's USB Hub
• Receipt Autocutter Installed, Built in Power Supply
• 75% Reduced ECO Power Consumption
• Dark Gray Color Printer, Black Cash Drawer with 5 Space Till
• All Cables, Receipt Paper and Everything you need to get started is included
• Tablet or Square Stand Hardware is NOT included

** If you are using the Square Register app, this is the USB version of the Star TSP143 Printer and must be used with the Square Stand Hardware. You will need a Star ethernet or bluetooth printer if you are using Square or a similar Point of Sale app with the tablet or device by itself.

Cash Drawer Specifications :
Dimensions 16.5" x 16" x 3.5"
Weight 12 lbs
Color Black
Lock 3 Position Lock & 2 keys included
Cables Rj11 Cash Drawer Kick Cable Included
Till 5 space bill and 5 space coin trays
Material Metal bottom Case, plastic till with removable trays

Star TSP143IIU Specifications :

Printer Method

Direct Line Thermal

Print Speed

28 RPM (Receipts Per Minute)

Printer Case Color

White or Gray

Models Available

Auto Cutter model only

Print Resolution

203 dpi (8 dots per mm)

No. of Columns

Star Mode = 40, ESC/POS™ Font A 42 Font B 64

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages

Star Mode=40. ESC/POS™= 10 + 1 blank allowing an additional character page to be added

Bar Codes

Extended barcode functionality - 9 versions / PDF 417, Maxicode Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width


80mm standard, 58mm with paper guide

0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
N/A
80mm paper = 72mm, 58mm paper = 50.8mm

Top Margin

3 mm minimum default

Auto Cutter

Guillotine (Partial Cut Only)

Cover Open Sensor

Yes

Logo Store Capacity

Unlimited

Multiple Copy Support

Supported through futurePRNT Software

Journal Capability

Supported through futurePRNT Software

Label Support

N/A

Power Supply

Internal with power cable supplied (not available on the TSP100PUSB; requires optional PS60A external power supply only when using standard Full Speed 2.0 USB cable)

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS and Android

Digitally Signed (WHQL)

Yes

Swappable Interfaces

N/A

Connectivity
TSP100ECO
Virtual Serial Port to USB

USB 2.0, Full Speed with cable supplied
Supported through
futurePRNT Software

Emulation Modes

Star Mode, ESC/POS™

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.6 Amp. Printing, 0.1 Amp. Standby

Operating Conditions

Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH


Dimensions
Weight:
Auto Cutter Models

142 x 132 x 204 (w x h x d)mm

TSP143ECO - 1.73Kg,

Safety Standards

UL, C-UL, TüV, FCC, VCCI, EN55022, CE

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
1 Million Cuts

Options

Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swap-A-Star Extended Warranty Program (US)
Extend-A-Star Extended Warranty Program (US and Canada)
