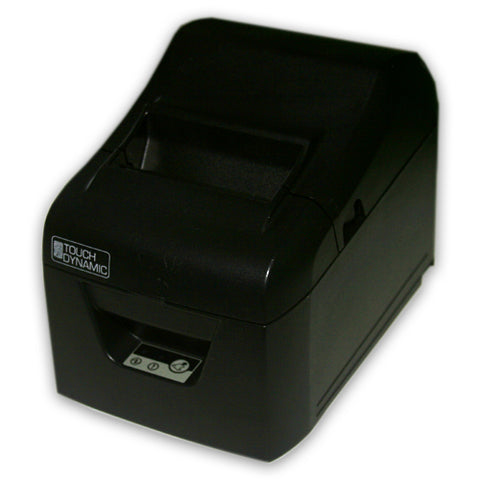

Refurbished Touch Dynamic Kitchen Printer

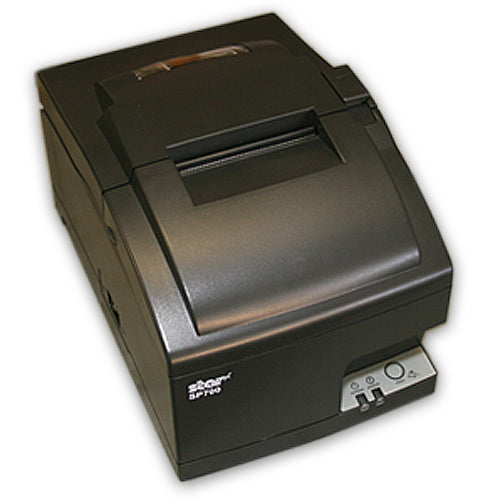

Touch Dynamic PR-IM-E Impact Kitchen Order Printer Ethernet Interface Star SP700

Interface Selection Questions?

Expedited Shipping Information

$299.95

• Fully Refurbished, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA
• 2-color, high quality graphics printer
• Epson and Star Compatible Impact Receipt Printer
• Ethernet Interface
• Receipt Autocutter, Power Supply Built In
• Dark Gray Color
• Power Cord included, interface cables sold separately

Full Touch Dynamic PR-IM Specifications :
Printer Method 9 Pin Serial Impact Dot Matrix
Print Speed 13 Receipts Per Minute (4.7 Lines Per Second at 42 Columns)
Printer Case Color Putty or Gray
Models Available Tear Bar or Auto Cutter Without Rewinder
Tear Bar or Auto Cutter With Rewinder
Two Color Print Capability Red & Black Ribbon Required – RC700BR
No. of Columns 42 / 35
Font Size
Character Size
Character Set
Code Pages
Character Per Inch (CPI)

5 x 9 / 7 x 9
1.2 (W) x 2.42 (H) / 1.5 (W) x 2.42 (H) mm
95 Alphanumeric, 32 International
40
16.9 / 14.1

Line Spacing 1/6 inch Standard

Paper Specifications
Width

Roll Diameter
Thickness 1 Ply Paper
Copy Capability 2 Ply
Copy Capability 3 Ply
Easy-Load
Paper Out Sensor
Paper Low Sensor
Print Width


76mm standard, Adjustable 69.5mm or 58mm with paper guide

Up to 85mm
0.065 ~ 0.085 mm
Original + 1, 0.05-0.08 / piece, total less 0.14
Original + 2, 0.05-0.08 / piece, total less 0.20
"Drop-In & Print"
Standard
Optional
63mm, 57mm, 45mm

Ribbon Specifications

RC700B
RC700BR
RC700D



Black (3,000,000 Characters)
Black/Red (1,500,000 / 750,000 Characters)
Indelible Black Ribbon (Laundry Applications)

Auto Cutter Guillotine (Partial Cut Only)
Cover Open Sensor Yes
Program ROM Flash Memory (16 Mbit), NV bit image 256 KB
Multiple Copy Support Original + 2 Copies Maximum
Journal Capability Yes; Rewinder model required
Label Support N/A
Power Supply Internal; Power cable included in box

Drivers Available

Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry

Digitally Signed (WHQL) Yes
Swappable Interfaces Yes
Connectivity Apple MFi Certified Bluetooth, WebPRNT, WebPRNT Browser App, Serial, Parallel, USB, Ethernet
Emulation Modes Star Mode, ESC/POS™
Peripheral Drive Circuit 2 Drivers
Power Consumption  Average 36W. Printing, 10W.
Operating Conditions Temperature: 0ºC to 50ºC
Humidity: 0% - 90% RH (without condensation)
Storage Conditions Temperature: -20ºC to 70ºC
Humidity: 5% - 95% RH
Dimensions
Non-Rewinder Models
Rewinder Models

Weight:
Tear Bar Model
Auto Cutter Model
Tear Bar Rewinder Model
Auto Cutter Rewinder Model

160 x 152 x 245 (w x h x d)mm
164 x 152 x 245 (w x h x d)mm


2.96 kg
3.18 kg
3.43 kg
3.65 kg

Safety Standards UL, C-UL, TüV, CB, FCC Class A, VCCI Class A, EN55022, CE
Reliability MCBF
Print Head
Auto Cutter
22 Million Lines
150 Million Characters
1 Million Cuts
Options Kitchen Buzzer (BU01-24-A)
Wall Mount Bracket (WB-S700)
Vertical Stand Kit (VS-S700)
Near End Paper Sensor
Swappable Interfaces
Swap-A-Star Extended Warranty Program (US)
Extend-A-Star Extended Warranty Program (US and Canada)
