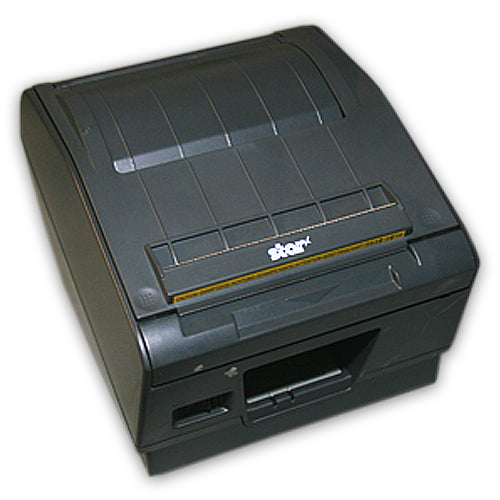

Refurbished Star Micronics TSP800L TSP828U Label Printer

Star Micronics TSP800L Thermal Barcode Shipping Label Printer Model TSP828U

Interface Selection Questions?

Expedited Shipping Information


• Fully Refurbished, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA
• High Speed Output - Up to 150mm/sec
• 1 & 2 Dimensional Barcode Support
• Fully Adjustable Roll Widths from 1.7" ~ 4.4”
• High Speed Output - Up to 150mm/sec
• Dark Gray Color
• Automatically Peels and Presents Labels
• Detects Opacity or Black Marks Between Labels
• Power Supply and Power Cord included, interface cables sold separately

Full Specifications :

Printer Method

Direct Line Thermal

Print Speed

26 Labels Per Minute (150 mm/sec)

Printer Case Color

Putty or Gray

Model Available

Tear Bar Only with Auto-Peeler

Print Resolution

203 dpi (8 dots per mm)

Font Size

12 x 24, 9 x 24, 16 x 24

Bar Codes

9 versions

Paper Specifications
Thermal Label Roll
Thermal Receipt Roll

Roll Diameter
Transmissive/Gap Sensor
Black Mark Sensor
Paper Out Sensor
Paper Low Sensor
Maximum Print Width

41 – 108mm (± 0.5mm)
45 – 112mm (± 0.5mm)

Up to 190µm maximum
Up to 110 mm
"Drop-In & Print"
Configurable by Dip Switch
104mm Maximum

Cover Open Sensor


Multiple Copy Support


Journal Capability


Label Support

Yes; Detects gaps or black marks between labels

Power Supply

External; Required PS60A External Power Supply Included in Box

Drivers Available

Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry

Digitally Signed (WHQL)


Swappable Interfaces



Dual 9 Pin RS232C Serial/USB, Parallel, or Ethernet

Emulation Modes

Star Mode

Peripheral Drive Circuit


Power Consumption

Average 2.0 Amp. Printing, 0.1 Amp. Standby
Requires PS60A External Power Supply

Operating Conditions

Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH


180mm(W) x 213 (D) x 157(H) mm
2.0 kg

Reliability MCBF
Print Head

37 Million Lines


Vertical Stand – VS-T800
Wall Mount Bracket – WB-T800
Swappable Interfaces
24V Mobile Power Supply
