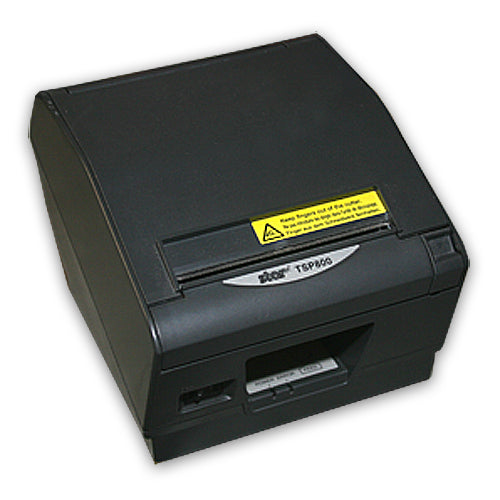

Star TSP800IIRx Pharmacy Prescription Printer

Star Micronics TSP800IIRx Prescription Label Thermal Printer Model TSP847IIRx Refurbished Dark Gray

Interface Selection Questions?

Expedited Shipping Information


• Fully Refurbished, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA
• Wide Paper Format: 4.4” for Pharmacy Prescription Labels
• Black Mark Label Support
• Locking Paper Chamber with Key Included
• Receipt Autocutter Installed
• Dark Gray Color
• Disable Paper Feed Function, Ultra Secure
• Ultra High Speed: 37 Prescriptions Per Minute (180mm/sec)
• Power Supply and Power Cord included, interface cables sold separately

Full Specifications :

Printer Method

Direct Line Thermal

Print Speed

37 Prescriptions Per Minute (180 mm/sec)

Printer Case Color

Available only in Gray

Models Available

TSP847Rx Includes Both Tear Bar and Auto Cutter with Locking Mechanism

Print Resolution
(Vertical x Horizontal)

203 (8 dots per mm)

No. of Columns

104mm Max with A4 Reduction Facility

Font Size

12 x 24

Character Matrix

ANK, 12 x 24, IBM Graphic 12 x 32

Character Set

ANK 95, 32 Int 128 Graphic

Code Pages / Character Table

40 Code Pages, Katakana, IBM

Bar Codes

9 versions

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications

Roll Diameter
Paper Out Sensor
Black Mark Sensor
Paper Low Sensor
Maximum Print Width

104mm standard

.065 ~ 0.15 mm
Up to 100 mm
"Drop-In & Print"
104 mm Maximum

Top Margin

15 mm minimum default

External Paper Feed Support


Auto Cutter

Guillotine (Full or Partial Cut Selectable)

Cover Open Sensor


Flash ROM / SRAM

2 x 8 MBbit plus 2 x 1 Mbit Statis RAM

Multiple Copy Support


Journal Capability


Label Support

Yes; Black timing marks between labels required

Power Supply

External; Required PS60A External Power Supply Included

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS, and Android, and Scalable Raster Driver

Digitally Signed (WHQL)


Swappable Interfaces



Apple MFi Certified Bluetooth, Serial, Parallel, USB and Ethernet, WebPRNT Browser App

Emulation Modes

Star Mode, DP8340 Mode, ESC/POS™

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.1 Amp. Standby
Required PS60A External Power Supply Included

Operating Conditions

Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH


180 x 148 x 213 (w x h x d)mm
1.7 kg

Safety Standards

UL, C-UL, TüV, CB, FCC, VCCI, EN55022, CE

Reliability MCBF
Auto Cutter

37 Million Lines
2 Million Cuts


Vertical Stand (VS-T800)
Wall Mount Bracket (WB-T800)
Swappable Interfaces
Swap-A-Star Extended Warranty Program (US)
Extend-A-Star Extended Warranty Program (US and Canada)
