Square Stand Hardware Bundle TSP143IIU ECO Receipt Printer + Cash Drawer TSP100II USB
• Free UPS Ground Shipping to Continental USA

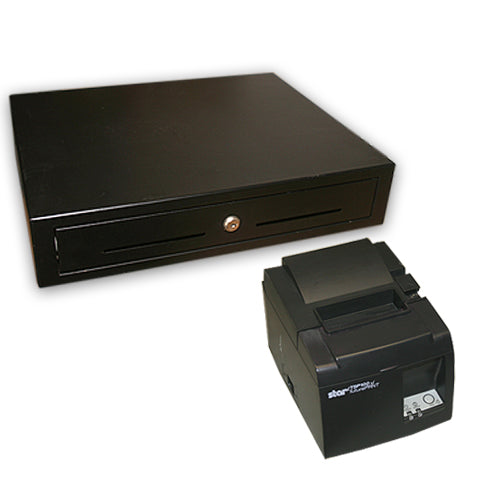

• Star TSP143IIU Receipt Printer and a NEW Compatible Cash Drawer
• Square Stand Compatible Thermal Receipt Printer, USB Interface
• New Standard Duty, Reliable Cash Drawer with Lock
• Printer Plugs directly into the Square Stand's USB Hub
• Receipt Autocutter Installed, Built in Power Supply
• 75% Reduced ECO Power Consumption
• Dark Gray Color Printer, Black Cash Drawer with 5 Space Till
• All Cables, Receipt Paper and Everything you need to get started is included
• Tablet or Square Stand Hardware is NOT included
** If you are using the Square Register app, this is the USB version of the Star TSP143 Printer and must be used with the Square Stand Hardware. You will need a Star ethernet or bluetooth printer if you are using Square or a similar Point of Sale app with the tablet or device by itself.
Cash Drawer Specifications :
| Dimensions | 16.5" x 16" x 3.5" |
| Weight | 12 lbs |
| Color | Black |
| Lock | 3 Position Lock & 2 keys included |
| Cables | Rj11 Cash Drawer Kick Cable Included |
| Till | 5 space bill and 5 space coin trays |
| Material | Metal bottom Case, plastic till with removable trays |
Star TSP143IIU Specifications :
|
Printer Method |
Direct Line Thermal |
|
Print Speed |
28 RPM (Receipts Per Minute) |
|
Printer Case Color |
White or Gray |
|
Models Available |
Auto Cutter model only |
|
Print Resolution |
203 dpi (8 dots per mm) |
|
No. of Columns |
Star Mode = 40, ESC/POS™ Font A 42 Font B 64 |
|
Font Size |
12 x 24 |
|
Character Set |
ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese |
|
International Code Pages |
Star Mode=40. ESC/POS™= 10 + 1 blank allowing an additional character page to be added |
|
Bar Codes |
Extended barcode functionality - 9 versions / PDF 417, Maxicode Option |
|
Line Spacing |
3 mm or 4 mm or programmable |
|
Paper Specifications |
|
|
Top Margin |
3 mm minimum default |
|
Auto Cutter |
Guillotine (Partial Cut Only) |
|
Cover Open Sensor |
Yes |
|
Logo Store Capacity |
Unlimited |
|
Multiple Copy Support |
Supported through futurePRNT Software |
|
Journal Capability |
Supported through futurePRNT Software |
|
Label Support |
N/A |
|
Power Supply |
Internal with power cable supplied (not available on the TSP100PUSB; requires optional PS60A external power supply only when using standard Full Speed 2.0 USB cable) |
|
Drivers Available |
Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS and Android |
|
Digitally Signed (WHQL) |
Yes |
|
Swappable Interfaces |
N/A |
|
Connectivity |
USB 2.0, Full Speed with cable supplied
Supported through futurePRNT Software |
|
Emulation Modes |
Star Mode, ESC/POS™ |
|
Peripheral Drive Circuit |
2 circuits, (24V max. 1A), 1 Compulsion input |
|
Power Consumption |
Average 1.6 Amp. Printing, 0.1 Amp. Standby |
|
Operating Conditions |
Temperature: 5ºC to 45ºC |
|
Storage Conditions |
Temperature: -20ºC to 60ºC |
|
Dimensions Weight: Auto Cutter Models |
142 x 132 x 204 (w x h x d)mm |
|
Safety Standards |
UL, C-UL, TüV, FCC, VCCI, EN55022, CE |
|
Reliability MCBF |
60 Million Lines |
|
Options |
Splash Proof Cover (SPC-T100) |
