Square Hardware Bundle Compatible Receipt Printer Cash Drawer

Square Hardware Bundle Star mC-Print3 MCP31LB Bluetooth Receipt Printer + Cash Drawer Combo

Interface Selection Questions?

Expedited Shipping Information

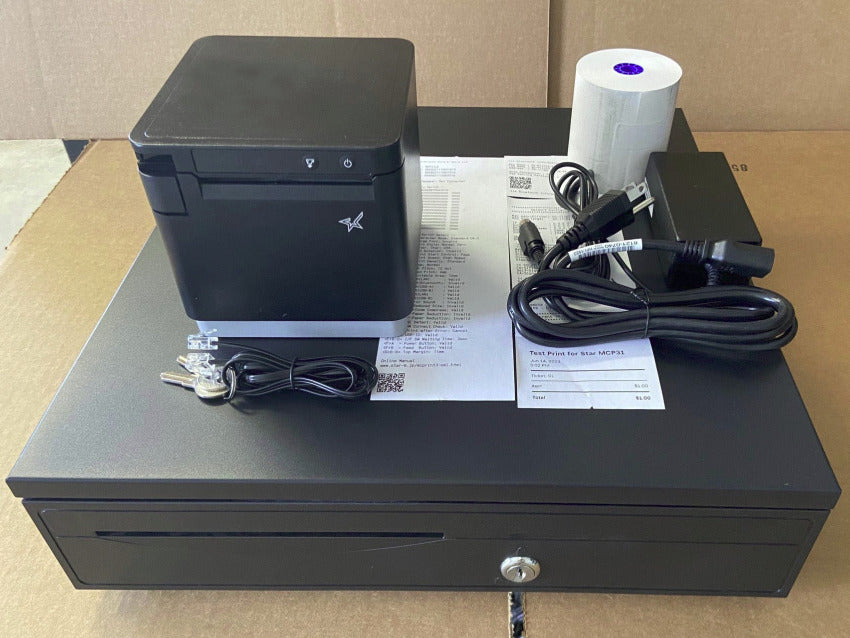

• Fully Refurbished Star MCP31LBNH Bluetooth Receipt Printer, Cleaned and Tested + 90 Day Warranty
• New 5 Space Bill and Coin Till Cash Drawer Box - 16.5" x 16" x 4.5" Dimensions
• Free UPS Ground Shipping to Continental USA
• Bluetooth, Ethernet (LAN) and USB Lightning Interface Version with CloudPRNT
• Cash Drawer Kick Cable, Set of Keys, Thermal Receipt Paper Roll
• Unique Print Flat technology feature
• Easy to integrate through common SDK
• USB, Lightning, LAN, CloudPRNT, No Peripheral Hub
• IPX2 splash-proof design
• SteadyLAN technology
• Fast charge and communication via USB-C power delivery port (mCP31C/CB)

The mC-Print3 is the mCollection‘s 3-inch POS receipt printer. Star’s compact mC-Print3 is 40% smaller than the TSP654II. The mC-Print3 provides an IPX2-rated splash-proof design, as well as front-load paper loading with exceptional functionality. This 3-inch thermal printer offers multiple connectivity options including USB, Lightning, Bluetooth, WLAN, LAN, and CloudPRNT/WebPRNT with SteadyLAN® technology. The five connections are all a part of the mC-Print3 model, making the printer adaptable to any future POS system changes. Additionally, the multiple connectivity options allow for the easy integration of common software.

Full Star MCP31LBNH Specifications :

Printer Method Direct Line Thermal
Print Speed 250 mm/sec
Printer Case Color White or Black
Models Available USB, Lightning, Ethernet (LAN), WLAN, CloudPRNT, Bluetooth* (*mCP31LB, mCP31CBi, & mCP31WBi only)
Print Resolution 203 dpi (8 dots per mm)
No. of Columns Star Mode = 48
Font Size 12 X 24
Character Set ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese
International Code Pages Star Mode=48
Bar Codes Extended barcode functionality – 9 versions / PDF 417, Maxicode Option
Line Spacing 3 mm or 4 mm or programmable
Paper Specifications Width: 80mm standard, 58mm with paper guide


Thickness: 0.053 ~ 0.075 mm

Roll Diameter: Up to 83 mm

Paper Load Easy Front Loading
Paper Out Sensor Standard
Paper Low Sensor Standard
Maximum Print Width 80mm paper = 72mm, 58mm paper = 50.8mm
Top Margin 11 mm default
Auto-Cutter Guillotine (Partial Cut Only)
Cover-Open Sensor Yes
Logo Store Capacity Unlimited
Label Support N/A
Power Supply External, new smaller design
Drivers Available Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android
Digitally Signed (WHQL) Yes
Swappable Interfaces N/A

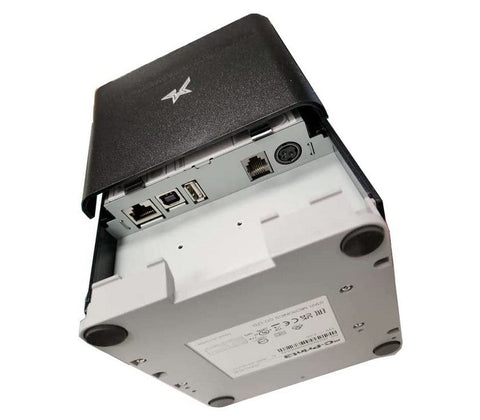

Connectivity mCP30: Ethernet (LAN), USB-B, CloudPRNT


mCP31L: Ethernet (LAN), USB-B, USB-A/Lightning, CloudPRNT

mCP31LBi: Ethernet (LAN), USB-B, USB-A/Lightning, CloudPRNT, Bluetooth (MFi)

mCP31C: Ethernet (LAN), USB-C Power Delivery for Android, Windows and Mac (not iOS), CloudPRNT

mCP31CB: Ethernet (LAN), USB-C Power Delivery for Android, Windows and Mac (not iOS), CloudPRNT, Bluetooth

mCP31W: WLAN, USB-A/Lightning, CloudPRNT

mCP31WBi: WLAN, USB-A/Lightning, CloudPRNT, Bluetooth (MFi)

Emulation Modes Star Mode


SDKs (Raster only)TM

Peripheral Drive Circuit 2 circuits, (24V max. 1A), 1 compulsion input
Power Consumption Average 1.6 Amp. Printing, 0.1 Amp. Standby
Operating Conditions Temperature: 5oC to 45oC


Humidity: 10% – 90% RH (without condensation)

Storage Conditions Temperature: -20oC to 60oC


Humidity: 10% – 90% RH

Dimensions 132 x 140 x 125mm (w x h x d)
Safety Standards UL, C-UL, TuV, FCC, VCCI, EN55022, CE
Reliability MCBF


Print Head

Auto Cutter

60 Million Lines



2 Million Cuts

Accessories mG-S322, mG-S1501, mG-S8200, 2D Barcode Scanners/Imagers, Line Display, Kitchen Buzzer, Cash Drawer
