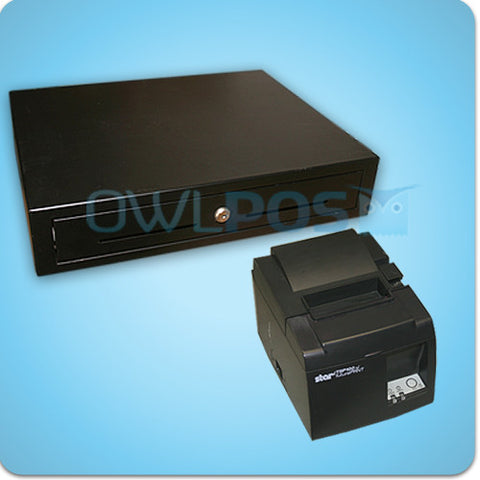

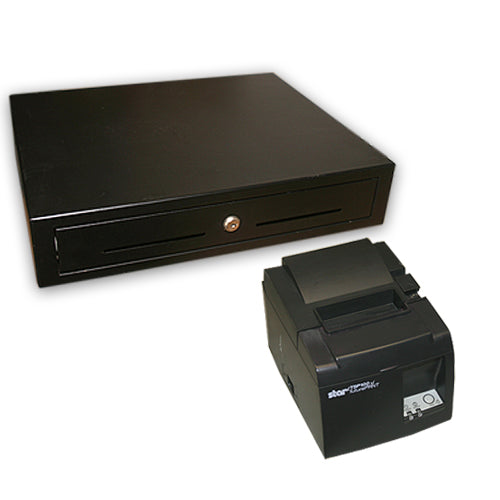

Square Compatible Hardware Bundle Star TSP143LAN

Square POS Hardware Bundle TSP143LAN Receipt Printer and Cash Drawer

Interface Selection Questions?

Expedited Shipping Information

$299.00

• Fully Refurbished Printer, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA
• Star TSP143LAN Receipt Printer and a NEW Compatible Cash Drawer
• iOS and Android Compatible Thermal Receipt Printer, Ethernet Interface
• Square Register, Square Stand, Shopify and Shopkeep Compatible
• Printer Plugs into Wifi Router via Ethernet, does not plug directly into Square Stand
• Receipt Autocutter Installed, Built in Power Supply
• Dark Gray Color Printer, Standard Duty Black Cash Drawer with 5 Space Till
• All Cables, Receipt Paper and Everything you need to get started is included
• Tablet or Square Stand Hardware is NOT included

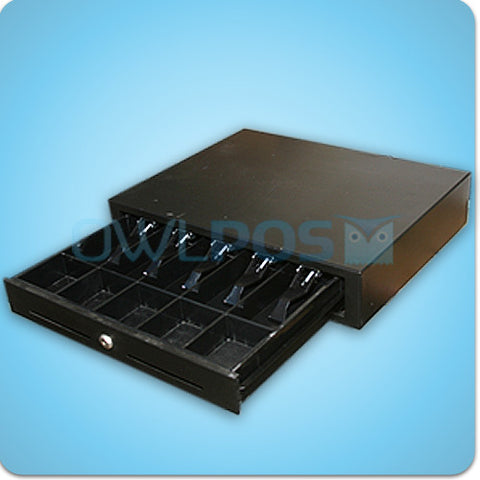

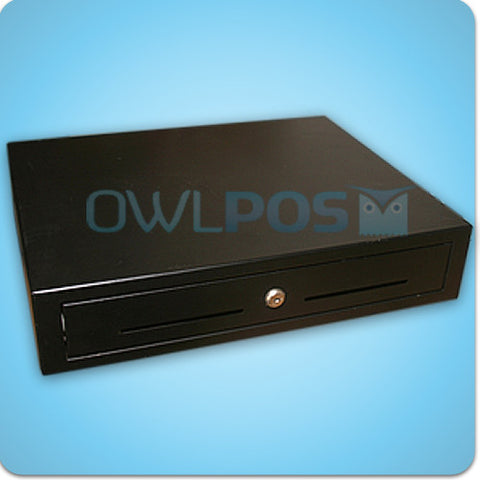

Cash Drawer Specifications :
Dimensions 16.5" x 16" x 3.5"
Weight 12 lbs
Color Black
Lock 3 Position Lock & 2 keys included
Cables Rj11 Cash Drawer Kick Cable Included
Till 5 space bill and 5 space coin trays
Material Metal bottom case, plastic till with removable trays

Star TSP143LAN Specifications :
Dimensions 142W x 204D x 132H mm
Weight Auto cutter model: 1.73 Kg - Tear bar model: 1.56Kg
Color Options White, Dark Gray
Interface USB 2.0, Full Speed, or Powered USB Full Speed or Ethernet; Virtual Serial Port for Legacy Applications
Print Method Direct thermal
Print Speed 125 mm / second, 22 rpm (receipts per minute)
Print Resolution 203 x 203 dpi
Emulation Star Mode, ESC/POS
OPOS Compatible Yes
Character Set ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese
Barcodes Supported Extended barcode functionality – 9 versions / PDF417 & Maxicode (pending)
Graphics Printing Yes
Data / Logo Storage Yes - printer software features an image import tool to store and handle an unlimited number of jpgs, gifs and bmps
Operating Temperature 41°F - 113°F (5°C - 45°C)
MCBF 60,000,000 lines
Print Head Life 100 Km
Auto Cutter Lifespan 1 million cuts
Paper Dimensions 80 mm standard width (58 mm with fitted guide), 83 mm maximum diameter
Paper Thickness 0.065 to 0.085 mm
Two Color Printing Capabilities Yes - red/black, blue/black, green/black (special paper required)
Auto Cutter Optional - guillotine cutter
Wall Mountable Yes
Mac Compatible Yes - OSX 10.2 or later

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dale of BBQ
Bravo!

Excellent bundle for the price! Fast as heck shipping too. Thanks ;)

J
JD
cash drawer bundle

good equipment. cash drawer works good and seems solid. locks are nice. printer was clean. setup for my spoon and sheet selling side business

w
wendy
Square Bundle

had everything we needed for our square stand, plug and play. we were up and running in 10 minutes. thanks!
